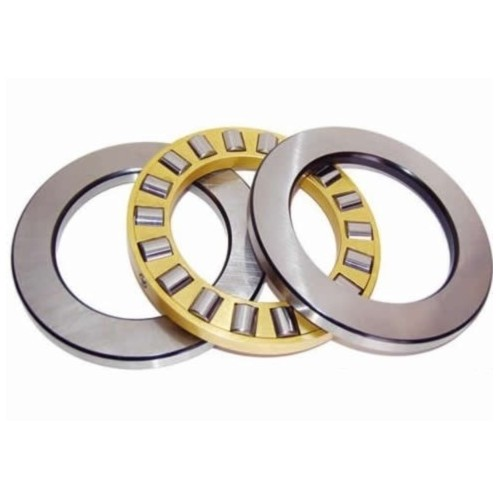

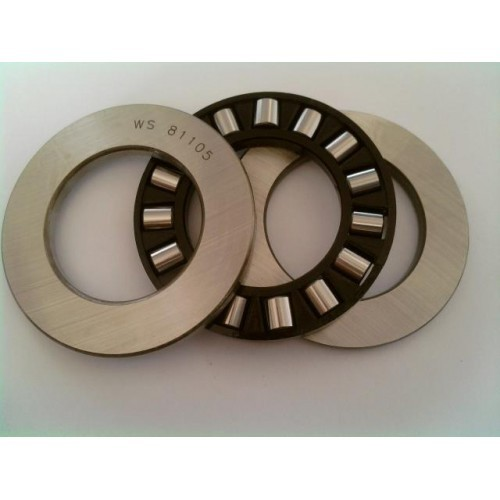

Needle roller bearing

BRAND:
ORIGIN:
PORT:
DELIVERY TIME:
MOQ:
CUSTOMIZED SERVICE:

  • Product Description
  • Video
  • Bearing No. Dc1 D1 Dc d1 Dw B1 B a
    rs
    AXK0414TN AS0414       4   14   2 1
    AXK0515TN AS0515   5 15 2 1
    AXK0619TN AS0619 LS0619 6 19 2 1 2.75 0.3
    AXK0821TN AS0821 LS0821 8 21 2 1 2.75 0.3
    AXK1024 AS1024 LS1024     10   24   2 1 2.75 0.3
    AXK1226 AS1226 LS1226     12   26   2 1 2.75 0.3
    AXK1528 AS1528 LS1528 GS81102 WS81102 15 16 28 28 2 1 2.75 0.3
    AXK1730 AS1730 LS1730 GS81103 WS81103 17 18 30 30 2 1 2.75 0.3
    AXK2035 AS2035 LS2035 GS81104 WS81104 20 21 35 35 2 1 2.75 0.3
    AXK2542 AS2542 LS2542 GS81105 WS81105 25 26 42 42 2 1 3 0.6
    AXK3047 AS3047 LS3047 GS81106 WS81106 30 32 47 47 2 1 3 0.6
    AXK3552 AS3552 LS3552 GS81107 WS81107 35 37 52 52 2 1 3.5 0.6
    AXK4060 AS4060 LS4060 GS81108 WS81108 40 42 60 60 3 1 3.5 0.6
    AXK4565 AS4565 LS4565 GS81109 WS81109 45 47 65 65 3 1 4 0.6
    AXK5070 AS5070 LS5070 GS81110 WS81110 50 55 70 70 3 1 4 0.6
    AXK5578 AS5578 LS5578 GS81111 WS81111 55 57 78 78 3 1 5 0.6
    AXK6085 AS6085 LS6085 GS81112 WS81112 60 62 85 85 3 1 4.75 1
    AXK6590 AS6590 LS6590 GS81113 WS81113 65 67 90 90 3 1 5.25 1
    AXK7095 AS7095 LS7095 GS81114 WS81114 70 72 95 95 4 1 5.25 1
    AXK75100 AS75100 LS75100 GS81115 WS81115 75 77 100 100 4 1 5.75 1
    AXK80105 AS80105 LS80105 GS81116 WS81116 80 82 105 105 4 1 5.75 1
    AXK85110 AS85110 LS85110 GS81117 WS81117 85 87 110 110 4 1 5.75 1
    AXK90120 AS90120 LS90120 GS81118 WS81118 90 92 120 120 4 1 6.5 1
    AXK100135 AS100135 LS100135 GS81120 WS81120 100 102 135 135 4 1 7 1
    AXK110145 AS110145 LS110145 GS81122 WS81122 110 112 145 145 4 1 7 1
    AXK120155 AXK120155 LS120155 GS81124 WS81124 120 122 155 155 4 1 7 1
    AXK130170 AS130170 LS130170 GS81126 WS81126 130 132 170 170 5 1 9 1
    AXK140180 AS140180 LS140180 GS81128 WS81128 140 142 180 178 5 1 9.5 1
    AXK150190 AS150190 LS150190 GS81130 WS81130 150 152 190 188 5 1 9.5 1
    AXK160200 AS160200 LSK160200 GS81132 WS81132 160 162 200 198 5 1 9.5 1
